imageGEO193 - Laser Ablation System | Geoimaging

Designed for the next generation of geochemical analysis

The future of geochemical analysis lies in imaging. The imageGEO193 provides the technology and workflow enhancements to create the highest resolution geochemical images at unprecedented speed.

Latest Application Note
Download Flyer
Imaging Gallery

Animation on How Laser Imaging Works

imageGEO193 - Laser Ablation System | Geoimaging
imageGEO193 - Laser Ablation System | Geoimaging

Experience the flexibility of high resolution geochemical imaging and precise measurement in a single system

APPLICATIONS:

  • High speed geochemical imaging
  • Precise isotope ratio analysis
  • Geochronology, Trace Elemental, Ocean Sciences and Paleoclimate

MARKETS:

  • Geochemical research
  • Exploration and industrial analysis

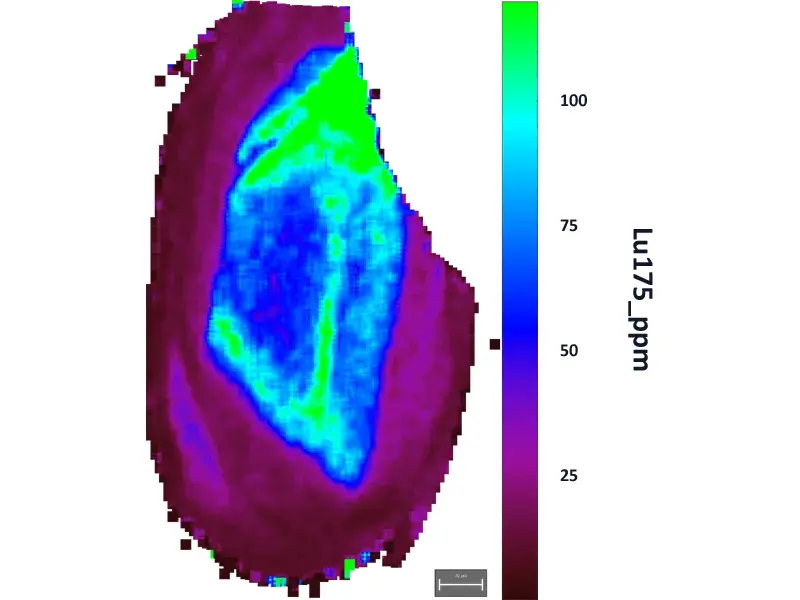

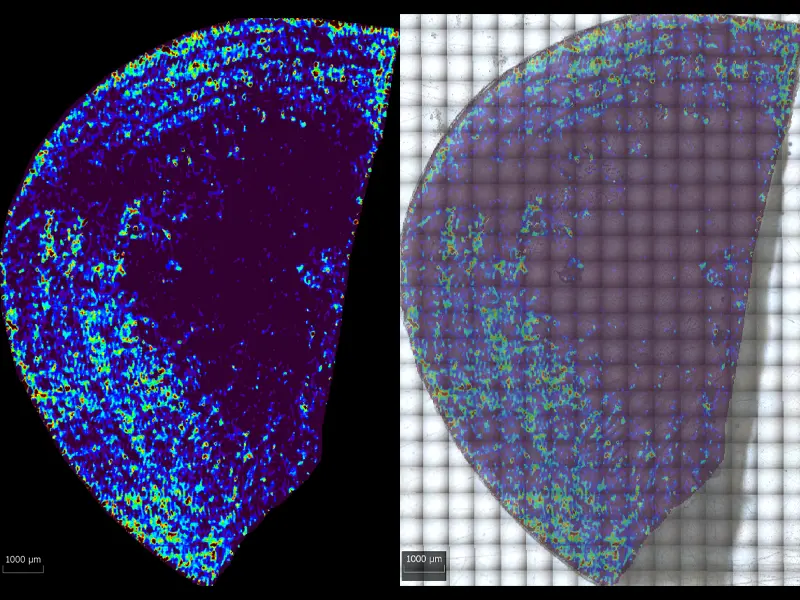

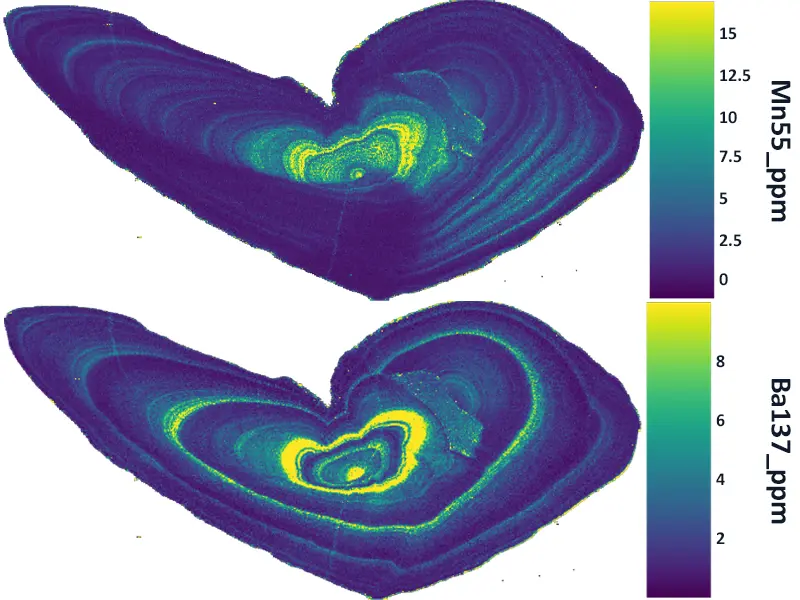

imageGEO193 Data & Image Mapping

A configurable approach to geochemical analysis of any sample

STANDARD CONFIGURATION:

  • Wavelength: 193 nm
  • Repetition Rate: 0 to 500 Hz
  • Fluence: ≥15 J/cm2 (high resolution attenuation)
  • Ablation Chamber: TwoVol3
  • Provides up to 150 microns in 1 micron increments/resolution via the patented IVA device

CONFIGURATION OPTIONS:

  • Spot Size: extendable to 220 µm (circular and rectangular spots)
  • Repetition Rate: optional 1000 Hz (a water cooled option is available for 100% duty cycle which is required for long imaging experiments)
  • Imaging mode offers single peak resolution of 1 ms (FW0.1M) for imaging at 1000 pixels per second
  • Analytical mode gives stable signal intensity <1.5 %RSD for isotope/element ratio analysis
  • Tuneable washout speed from ms to s to cover all applications
  • Ablation Chamber: TwoVol2 (optional upon request)
  • Swap between modes in <5 minutes

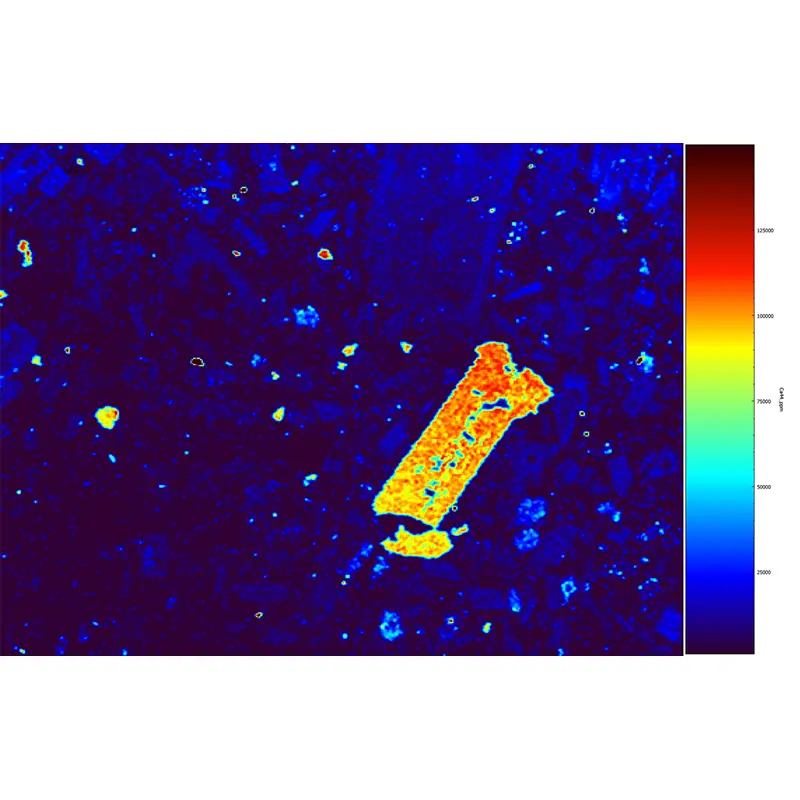

imageGEO193 - 49Ti

imageGEO193 - 49Ti

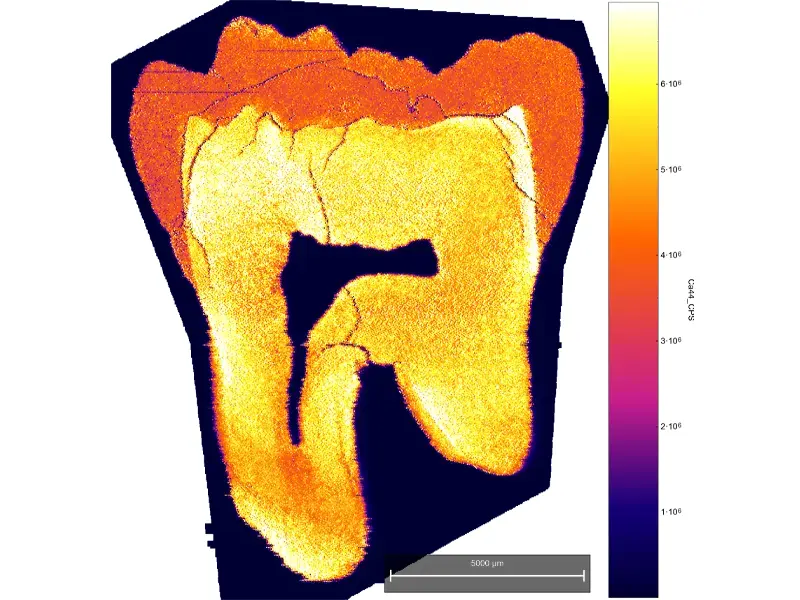

imageGEO193 - 88Sr

imageGEO193 - 88Sr

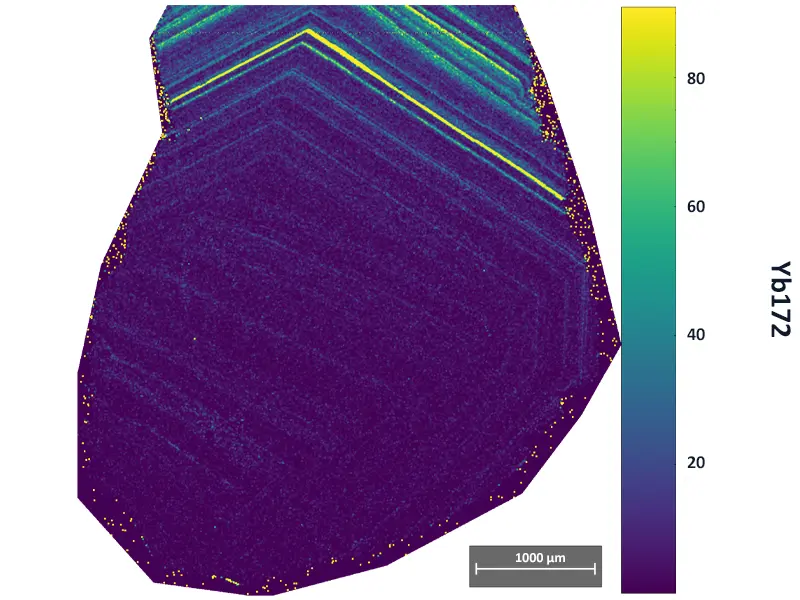

imageGEO193 - 208Pb

imageGEO193 - 208Pb

High frequency, resolution and magnification for high-speed reliable results

  • Optional second MFC for N2 for signal enhancement in the ICP
  • Compatible with Elemental Scientific's Dual Concentric Injector (DCI) for ultrafast washouts <1 ms
  • TwoVol2 as standard. Down to 30 ms washout with DCI. 2% spatial reproducibility
  • TwoVol3 optional. Ultra-fast washout with nanograde stages for submicron resolution imaging at TOF speeds
  • Optional x20 viewing system for highest magnification sample viewing
