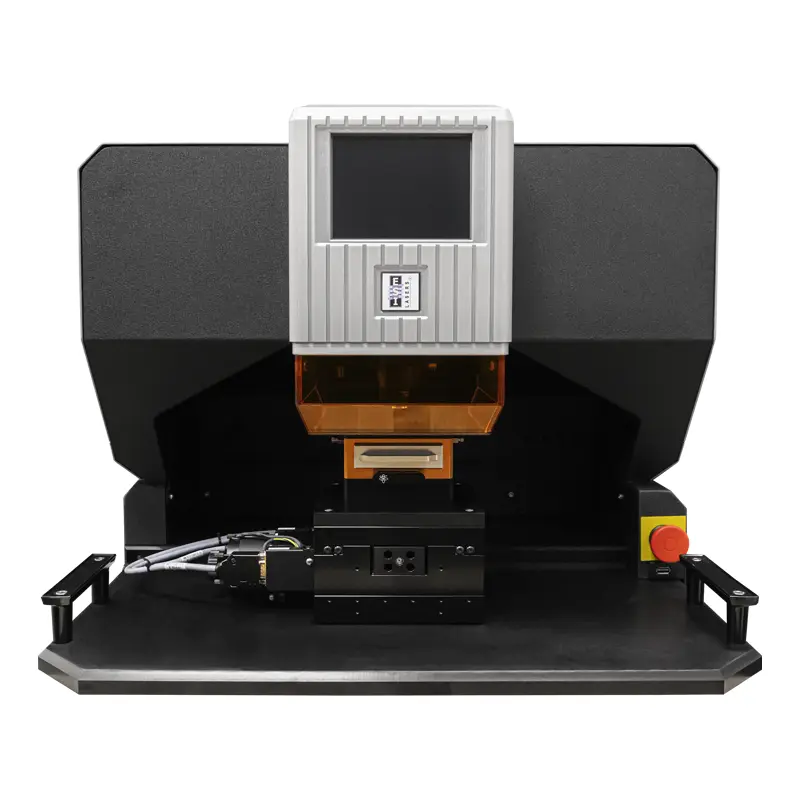

A Dedicated LA-IRMS Ablation Chamber
LA-IRMS (Laser Ablation-Isotope Ratio Mass Spectrometry) is a technique that combines laser ablation with isotope ratio mass spectrometry to analyze the isotopic composition of solid samples with high spatial resolution and sensitivity, enabling in-situ analysis of organic carbon and other elements. By leveraging our decades of experience in other “low-flow” applications, the IRMS ablation chamber is optimized for IRMS and provides sensitive analysis, low backgrounds and accommodation of a wide variety of sample types.
IRMS Advanced Features
- Low Cell Volume – The IRMS ablation chamber allows enhanced sample transport and low gas flows compatible with IRMS requirements.

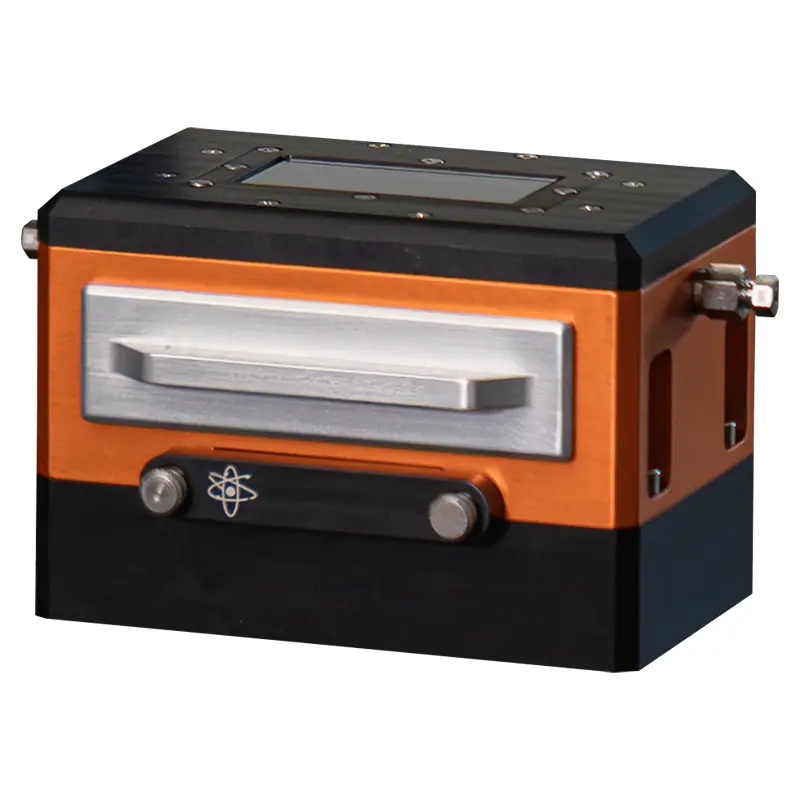

- Flexible Sample Accommodation and Mounting – The IRMS cell features a novel drawer for easy loading and unloading of samples which is proven to be leak-free during operation. Further, a variety of inserts are provided, enabling accommodation and analysis of different sample types including pucks, tree cores, pollen and microscope slides.
- Compatible With All ESL Laser Ablation Instruments & Major IRMS Models
- Optimized Cell Geometry – The internal geometry of the IRMS cell is designed to create a low volume environment, but also to ensure reproducible gas flow dynamics in all regions of the cell.
- Cryocell Compatible – A cryogenically cooled insert is available enabling the sample to be chilled to ~ -20° for CO2 measurement.

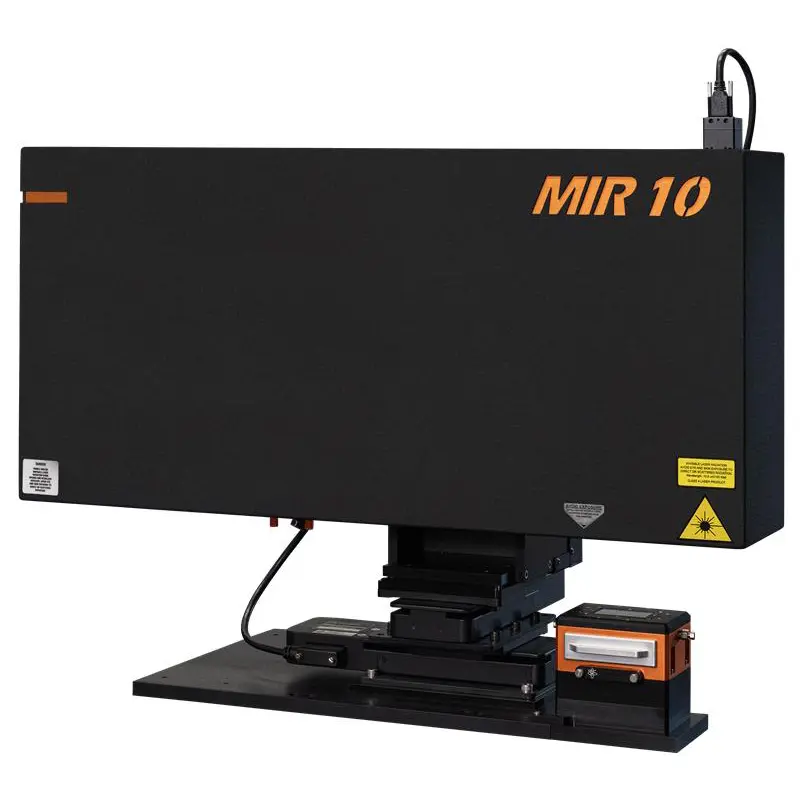

- Available in UV and IR configurations – Compatible with ESL laser ablation platforms and MIR102 laser fusion and heating system.
IRMS Applications and Resources
- Paleoclimate / Paleoenvironmental Studies
- Carbonate Geochemistry (δ¹³C / δ¹⁸O)
- Food Authentication / Provenance
- Environmental Studies
- Forensics
Characterization of a Novel LA-IRMS Sample Chamber and its Application in Providing Rapid and Accurate C Isotope Ratios
Read App Note
Read App Note
High Spatial Resolution Measurement of δ13C and δ18O in Carbonates Using an ESL MIR102 CO2 Heating Laser with low He Flow IRMS Cell
Read App Note
Read App Note
Determination of the Accuracy and Precision of the ESL LA-IRMS Sample Chamber when Coupled with the DELTA Q IRMS
Read App Note
Read App Note
