High-Speed, High-Resolution LIBS Imaging

Elemental Insight is a next-generation elemental imaging platform designed to deliver ultra-fast, high-resolution elemental maps of the even the largest and most complex samples. Powered by cutting-edge 1 KHz LIBS (Laser-Induced Breakdown Spectroscopy) technology and an advanced multi-channel CMOS detection system, Elemental Insight allows researchers and analysts to image elemental distributions with micron-scale precision across entire sample surfaces – in minutes, not hours.

LIBS (Laser-Induced Breakdown Spectroscopy) adds an exciting new dimension to the analysis of solid samples. Elemental Insight brings the ability to analyze large samples (20 cm x 20 cm standard configuration, upgrade to 20 cm x 30 cm stage) with high-speed, high-resolution imaging. The system utilizes a water-cooled 193 nm ArF excimer laser operating up to 1000 Hz. The ESLumen expands the periodic table to include elements not normally measured by ICPMS (H, C, N, O, and F). LIBS data is handled effortlessly by iolite, providing element identification, peak integration, calibration, and elemental imaging in a single data reduction software.

Request More Information
Download Flyer

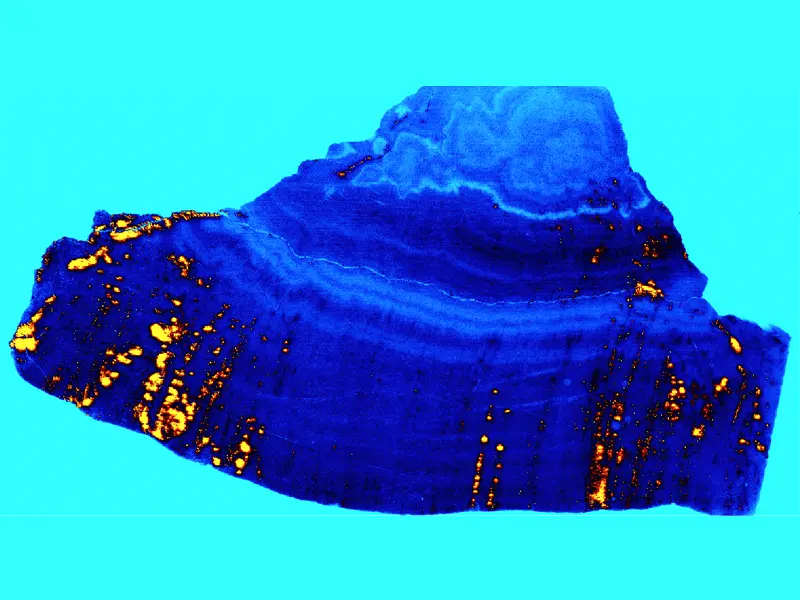

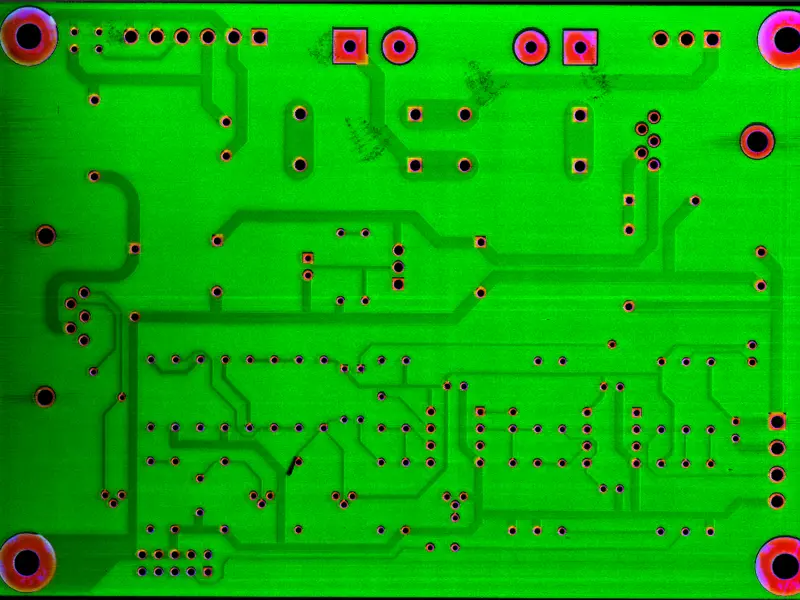

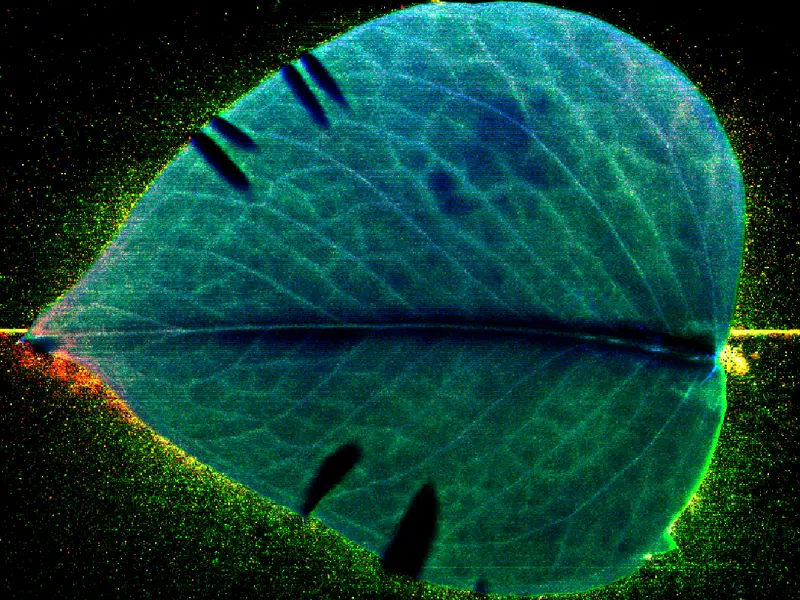

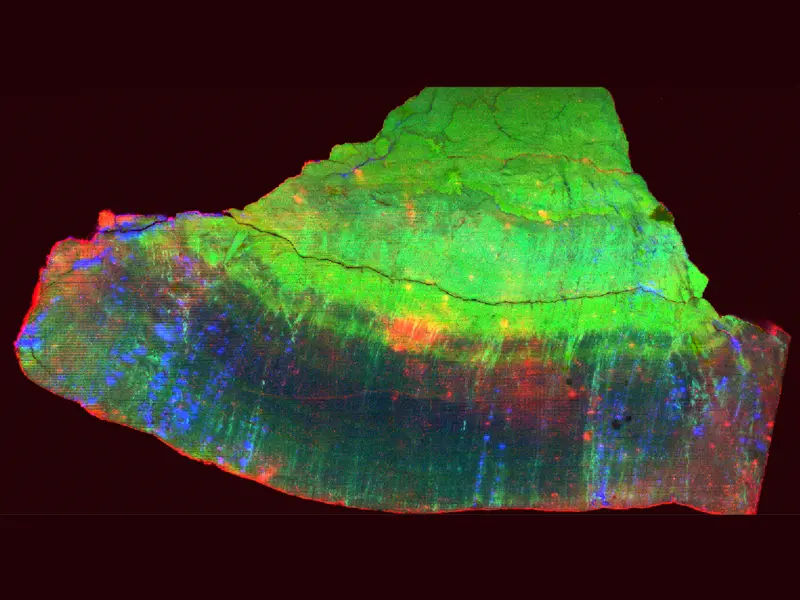

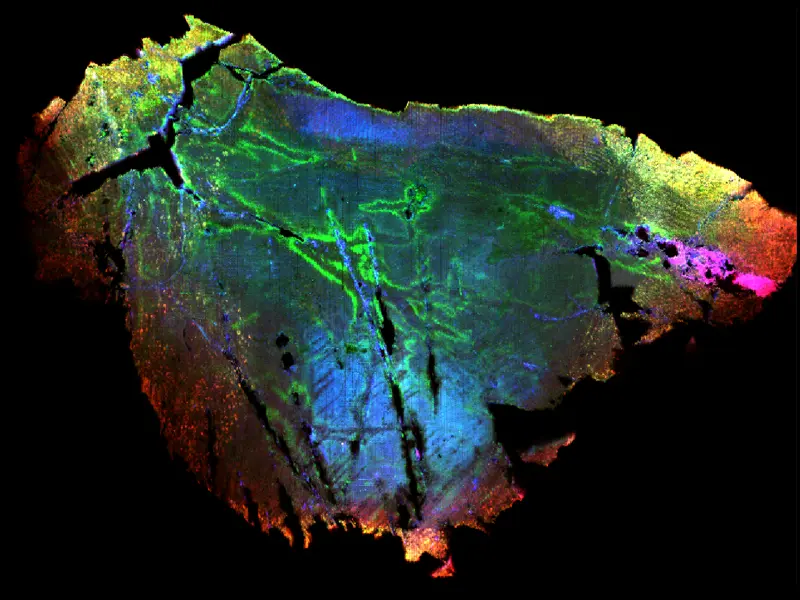

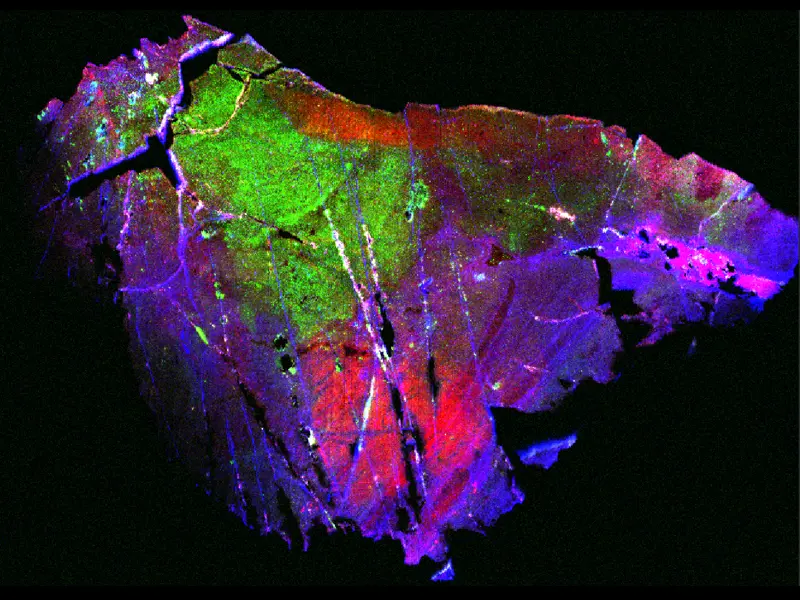

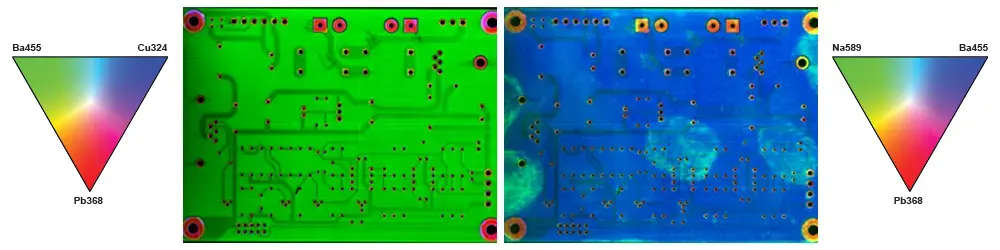

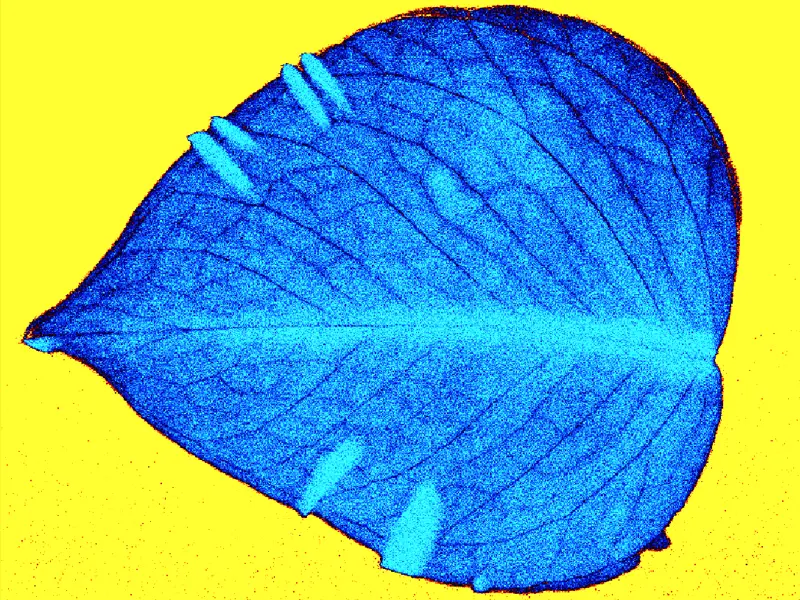

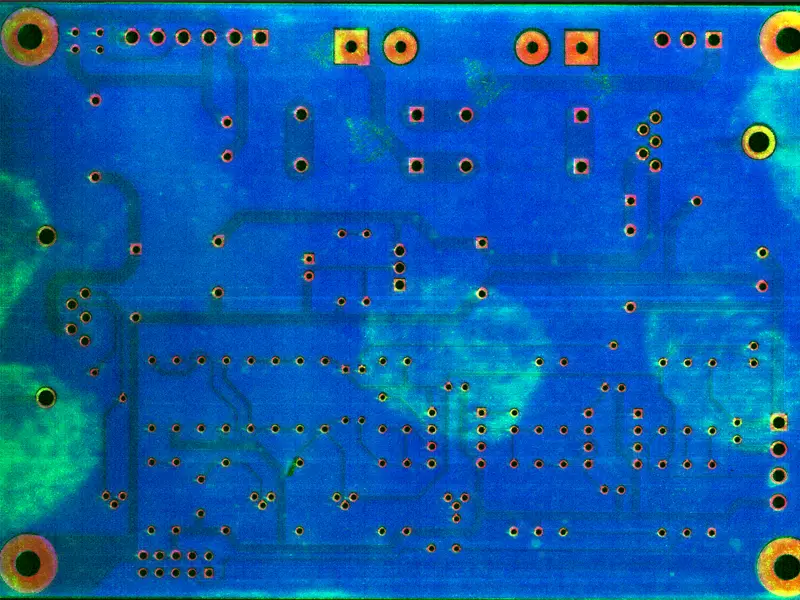

Imaging Gallery

Elemental Insight Data & Image Mapping

More flexibility, increased dynamic range, and elemental coverage across a wide range of matrices and applications

APPLICATIONS:

Elemental imaging
Purity testing
Materials characterization
Bulk analysis
Failure analysis
Depth profiling

MARKETS:

Environmental
Geochemistry
Forensic
Medical
Mining
Electronic
Manufacturing (metals/glass/plastics)
Batteries
Semiconductor

MATERIALS:

Alloys
Rocks
Minerals
Glasses
Plastics
Powders
Biological
Thin films
Ceramics
Metals
Batteries

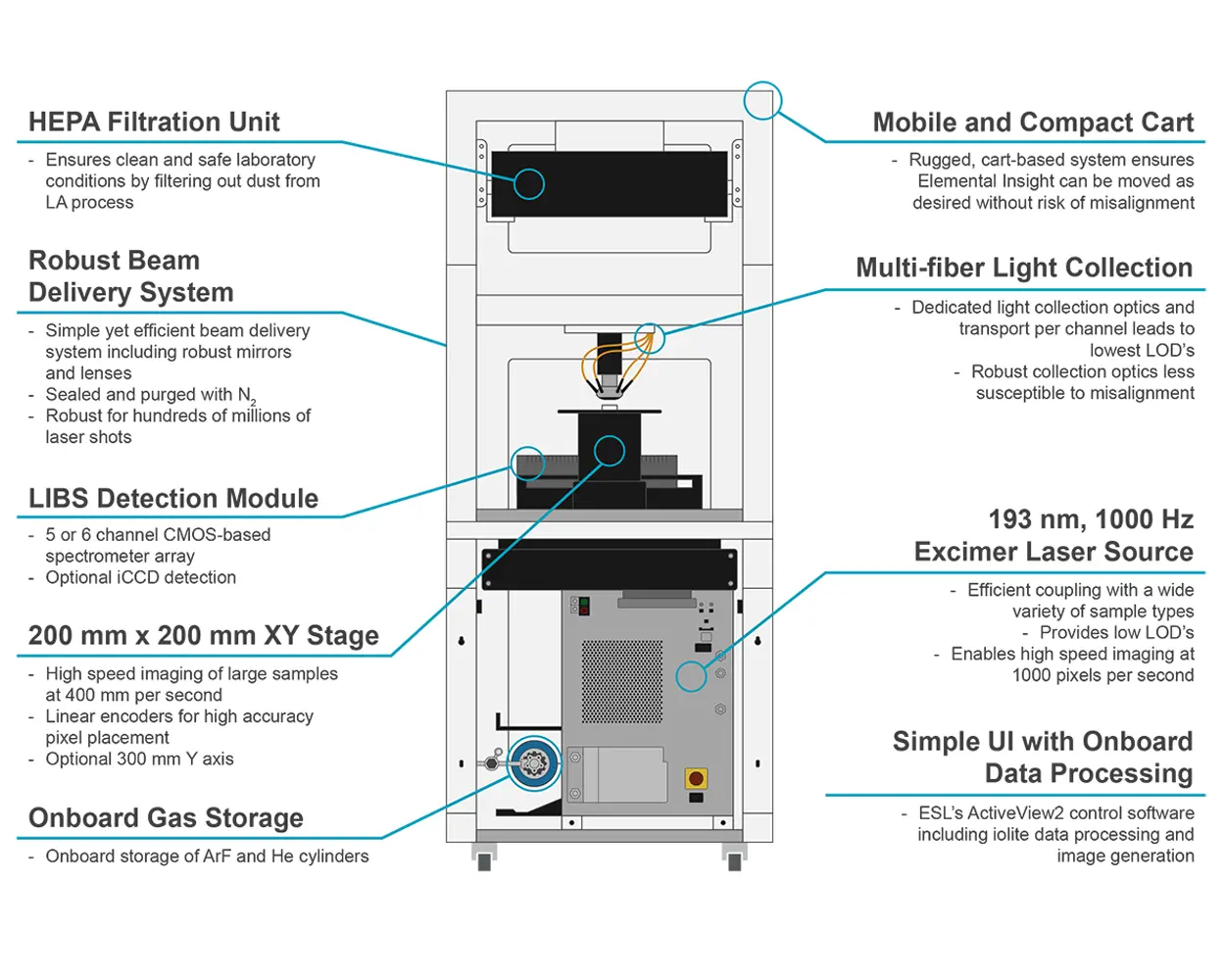

Elemental Insight Configuration

Water-cooled 193 nm ArF excimer laser
1000 Hz LIBS imaging
5-200 µm resolution
Sample stage: 20 cm x 20 cm, 3.5 cm max height (Upgradeable to 20 cm x 30 cm stage)
ESLumen (5-channel CMOS detector) (6th channel optional upgrade)
iLumen (ICCD) (optional upgrade)
Laser debris removal
Gas purged environment

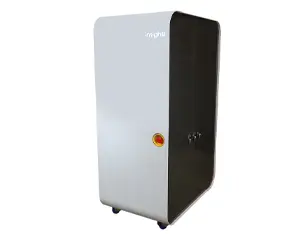

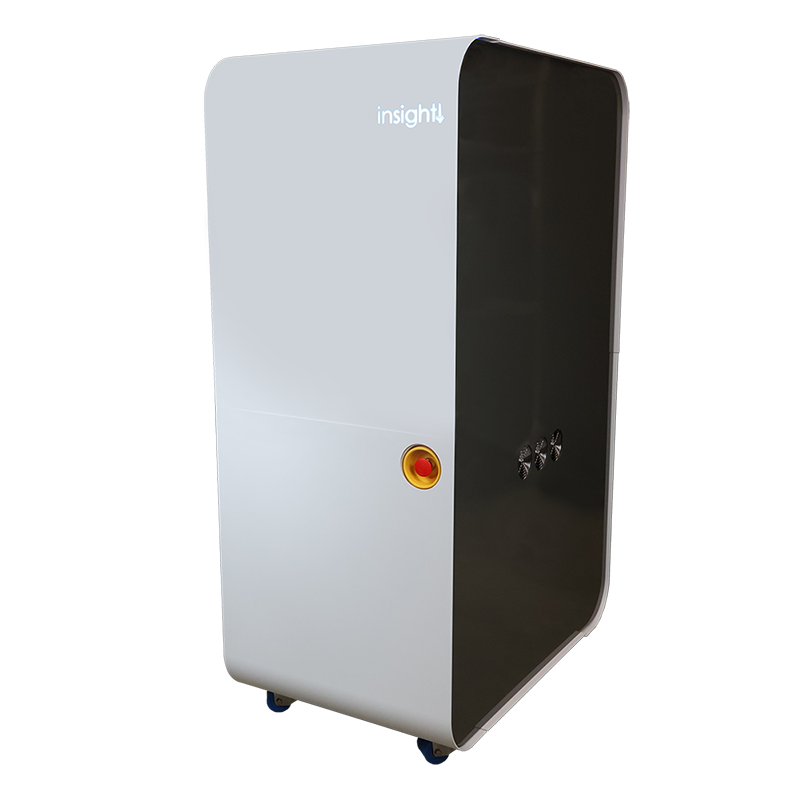

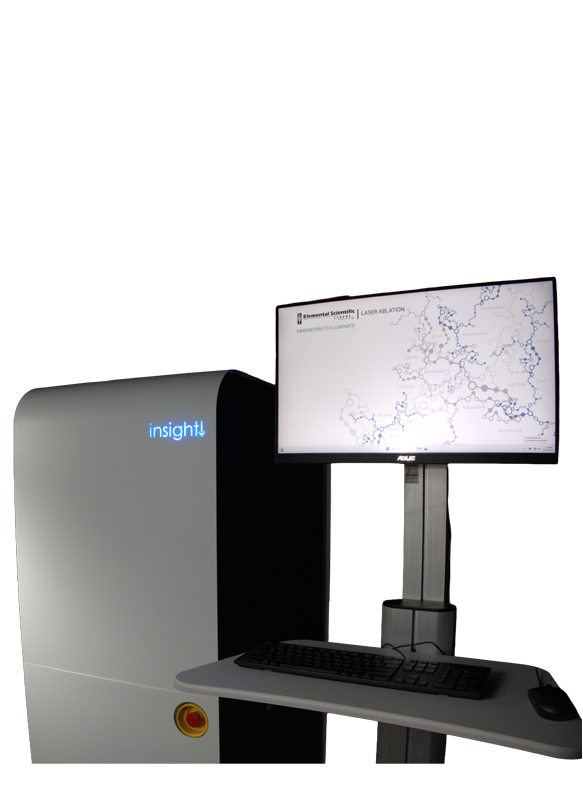

Elemental Insight

ESL’s first LIBS only product that utilizes a 193 nm ArF excimer laser to provide superior material-laser interaction, while providing breathtaking elemental images that set the bar in elemental analysis.
